Tracer Electronics manufactures conductive attachment leads for many different models of locating equipment. We guarantee to use only the best components and materials available. Our commitment to quality ensures that our customers always receive a quality finished product that is better than what is available through the original manufacturer of the locating equipment.

New for 2015 are the Tracer Stretch leads which utilize new stretchable wire providing better durability, less tangles, saving money every time the transmitter is deployed for a locate.


We can custom build to any specifications, just call or e-mail your request and we will gladly provide a quote accordingly.
Stacks Image 21138
PART NUMBER
VIVXLRCA
MET001CA
RAD4-8KCA
RAD400LCTXCA
RAD400XLRCA
DYN90DSTCA
SUB90DSTCA
SUB6PINCA
RYC6PINCA
RYCMONOCA
FISMONOCA

GROUND ROD
3.02.01.000980
DESCRIPTION/MAKE
Vivax XLR
Metrotech / Pipehorn /Heath
Radiodetection T/Tx
Radiodetection LCTX
Radiodetection HCTX, HPTX
Dynatel - 90 degree stereo
Subsite - 90 degree stereo
Subsite - 6 pin
Rycom - 6 pin
Rycom Mono
Fisher Mono


Universal Ground Rod
MODELS USED ON
All Vivax-Metrotech
Metrotech/Pipehorn/Heath
RD4000/5000/7000/8000
RD400
RD400
Model 2250/2273
Model 75T
Model 910/950
All Rycom 6-pin
All Rycom Mono
All Fisher Labs Models


All Brands
Stacks Image 21348
PART NUMBER
VIVXLRCA-ST
MET001CA-ST
RAD4-8KCA-ST
RAD400LCTXCA-ST
RAD400XLRCA-ST
DYN90DSTCA-ST
SUB90DSTCA-ST
SUB6PINCA-ST
RYC6PINCA-ST
RYCMONOCA-ST
FISMONOCA-ST

GROUND ROD
3.02.01.000980
DESCRIPTION/MAKE
Vivax XLR
Metrotech / Pipehorn /Heath
Radiodetection T/Tx
Radiodetection LCTX
Radiodetection HCTX, HPTX
Dynatel - 90 degree stereo
Subsite - 90 degree stereo
Subsite - 6 pin
Rycom - 6 pin
Rycom Mono
Fisher Mono


Universal Ground Rod
MODELS USED ON
All Vivax-Metrotech
Metrotech/Pipehorn/Heath
RD4000/5000/7000/8000
RD400
RD400
Model 2250/2273
Model 75T
Model 910/950
All Rycom 6-pin
All Rycom Mono
All Fisher Labs Models


All Brands
Custom sets of leads are available. We are often asked to use larger clips, different style clips, add longer lengths of wire, etc.

For custom leads, please call
(615) 285-3952 and a technician can walk you through the different options and pricing.

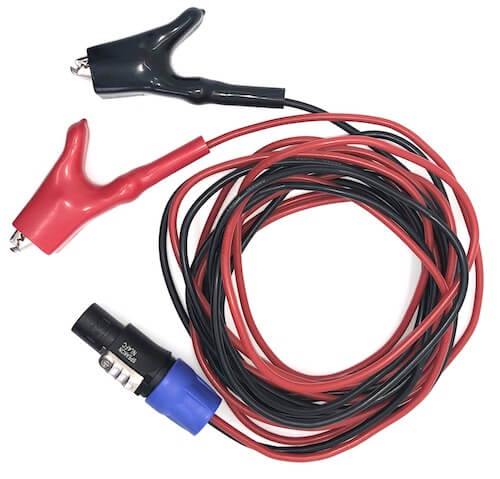

Tracer Brand Conductive Attachment Leads
Transmitter Lead Sets - All Models

vLocPro2 Features

Stacks Image 22097

Specifications

Standard Features:

  • Rugged ABS & carbon fiber construction for strength and light weight
  • Weighs 16% less than previous model
  • Alkaline (typically 12-hours intermittent use) 100% improvement
  • Li-Ion Rechargeable Battery (40 hours)
  • Mini USB socket for data transfer/software updates
  • Bluetooth enabled using optional "Plug-and-Play" Bluetooth module
  • GPS ready (easy push-button mapping)
  • Built-In locate log (store up to 1,000 locates w/GPS coordinates)
  • Ultra Fast Dual-Core processor engine for fast, reliable, and accurate results
  • Color backlit TFT high visibility display provides a best in class user experience, night or day
  • Very simple intuitive menu configuration for easy customized set-up
  • Over 70 receiver frequencies for compatibility with other manufacturers (free-of-charge)
  • Multiple Antenna modes (peak, null, peak-arrows, broad peak, sonde)
  • Multiple Gain modes (manual & auto)
  • Sonde (512Hz/640Hz/8kHz/33kHz)
  • Line Orientation Compass (360 degrees)
  • Automatic continuous depth or current measurement (selectable)
  • Fault-Find mode is standard
  • Very simple intuitive menu configuration for easy customized set-up

Screens

Stacks Image 22108

Using vLocPro2

Locating

MyLocator2 (App)

MyLocator2 is a FREE desktop App that runs on your PC. Simply plug USB cable into your vLoc2 series locator and let the App do the rest. MyLocator2 automatically checks your current software and with a single click lets users update their locator with the latest firmware. MyLocator2 also allows users to select just the features you want displayed and lock-out access to other features that you want hidden. MyLocator2 also provides an intuitive built-in utility that allows for easy data download of any saved "locate logs", especially for GPS users or locators requiring time and date stamp or SUE firms building underground utility maps. The MyLocator2 App is FREE OF CHARGE and is available at Vivax-Metrotech.com.
Stacks Image 22122

Bluetooth/GPS

Every vLocPro2 receiver can be Bluetooth enabled by adding an optional wireless Bluetooth module. Bluetooth allows for the vLocPro2 to be used with external devices like GPS receivers and mapping applications.
  • Bluetooth
  • UtiliMapper
  • Asteri
  • UtiliPad
  • VMMAP
  • Other
Tab 1
Stacks Image 22135
Plug-N-Play Bluetooth module can be customer installed into any vLocPro2/vLocML2/vLocDM2 receiver to provide reliable wireless communication to external devices, such as GPS receivers.
(2.204.01.00044)
Stacks Image 22138
Tab 2
Stacks Image 22141
Tri-Global UtiliMapper Software
Stacks Image 22144
Trimble GPS Systems
Tab 3
Stacks Image 22148
Stacks Image 22150
Asteri GPS Systems
Tab 4
Stacks Image 22155
Tri-Global UtiliPad Software
Stacks Image 22158
Tab 5
Stacks Image 22162
VMMAP for Smartphones and tablets
Stacks Image 22165
Tab 6
Stacks Image 22170
vLocPro w/HOLUX GPS mounted
Stacks Image 22173
Trimble Pro 6T
Stacks Image 22177

HOLUX GPS

Stacks Image 22180
TRIMBLE ProXT-XH GPS

Fault-Find (FF)

  • Accessory (Wire)
  • VM-510FFL (Wireless)
Tab 1
All vLoc-Series receivers accept the accessory A-Frame for fault locating.
Stacks Image 22193
Stacks Image 22195
Tab 2
Most vLoc-Series transmitters support the VM-510FFL “Stand-Alone” A-Frame. The VM-510FFL provides its own display and can line and fault locate.
Stacks Image 22200
Stacks Image 22202

Frequencies

All vLocPro2 receivers are equipped with the frequencies listed below.

Low

LOW
98Hz (PDM/PCM)
128Hz (PDM/PCM)
SD-USA (256Hz/512Hz)*
480Hz
491Hz
512Hz
577Hz
815Hz
982Hz (vLoc-9800)
1.02kHz
1.03kHz
1.09kHz
1.17Hz
1.45kHz
2.0kHz

*SD - Signal Direction
SD is optional for vLocPro2
SD is standard on vLocML
Stacks Image 22218
Low Frequency
  • Direct Connection
  • Long Distance locating
  • Low Bleed-over
Typical Uses
  1. long distance fiber optic cable
  2. long distance coated pipelines
  3. congested locates

Medium

MEDIUM
8.01kHz
8.19kHz
8.44kHz
9.5kHz
9.80kHz
9.82kHz (vLoc9800 / VM-850)
10kHz
12kHz
16.9kHz
22.5kHz
29.4kHz
32.8kHz
38.0kHz
Stacks Image 22230
Medium Frequency
  • Direct/Clamp/Induction
  • Most Cables & Pipes
  • Typically used most often
  • Good Signal Distance
  • Low to Medium Bleed-over
Typical Uses
  1. good for most locates
  2. power & telephone cables
  3. gas transmission & distribution

High

HIGH
65.5kHz
78.125kHz
78.132kHz
80.4kHz
82.3kHz
82.5kHz
83.1kHz (VM-810 / vLoc-9800)
89kHz
118kHz
121kHz
128kHz
131kHz
200kHz
Stacks Image 22242
High Frequency
  • Induction
  • Poor Grounding conditions
  • Short Signal Distance
  • High Bleed-over
Typical Uses
  1. water pipe & tracer wire
  2. "drop box" inductive
  3. open circuits

Passive

PASSIVE
Power 50 (50+150+250Hz)
Power 60 (60+180+300Hz)
Radio Mode (22.1kHz)
50Hz
60Hz
CP 100
CP 120
CATV (31.468kHz)
Stacks Image 22255
Passive
  • Sweeping for unknown utiities
  • Verifying locating marks
Typical Uses
  1. 60Hz - power cables or common bonded utilities, i.e., telephone, CATV, etc.
  2. RADIO - unknown buried cable & pipes
  3. CP 120 - cathodic protected pipelines
  4. CATV - some cable TV systems

Fault-Find (FF)

FAULT FIND
6Hz / 8.19kHz - Low
6Hz / 8.19kHz - High

8kFF - Low
8kFF - High
Stacks Image 22268
Fault Find
  • Sheath & Secondary fault locating
  • Simultaneously cable locates
  • Provides depth of cable fault
Typical Uses
  1. POWER - secondary fault locating
  2. TELEPHONE - sheath fault locating
  3. FIBER OPTIC - sheath damage/moisture entry point
  4. locating stub-outs

Transmitters

  • Loc-1Tx
  • Loc-5STx
  • Loc-10Tx
  • Loc-150Tx
  • FLS
Tab 1
Stacks Image 22282

1 - Watt

The Loc-1Tx utility transmitter is designed to provide customers the best choice when selecting and deciding on a professional low power cable and pipe locating system. The 1 watt multi-frequency transmitter offers reliable output unequaled simplicity.

Output Current: a maximum current output of 150mA (1 watt)
Output Voltage: 20V RMS
Voltage Protection: up to 240 VAC (external fuse)
Batteries: 4 D-cell
Induction: (1) Frequencies - (A002) 32.8kHz, (A010) 65.5kHz , or (A006) 83kHz
Clamp: 8kHz to 83kHz
Direct Connect: (A002) 512Hz, 8.19kHz, 32.8kHz, (A006) 512Hz, 8.19kHz, 83kHz, (A010) 8.19kHz, 32.8kHz, 65.5kHz

Includes: 10' lead set & ground stake.
Stacks Image 22288
Tab 2
Stacks Image 22291

5 - Watt

The Loc-5STx utility transmitter is designed to provide customers the best choice when selecting and deciding on a professional cable and fault locating system. The 5 watt is fully featured, and reliability and output performance unequaled by the competition.

Output Current: a maximum current output of 300mA (5 watt)
Output Voltage: 30V-50V RMS
Voltage Protection: up to 240 VAC (external fuse)
Batteries: 8 D-cell (or optional Rechargeable)
Induction: All Frequencies - 8kHz to 200kHz
Clamp: All Frequencies - 8kHz to 83kHz
Direct Connect: 8KFF, FF-High, FF-Low, SD-USA, SD-EUR, 256Hz, 440Hz, 480Hz, 484Hz, 491Hz, 512Hz, 640Hz, 982Hz, 1.45kHz, 8.19kHz, 8.44kHz, 9.5kHz, 9.82kHz, 32.8kHz, 38kHz, 65.5kHz, 78.1kHz, 82.5kHz, 83.1kHz, 89kHz, 131kHz, 200kHz
Multifrequency Mode: up to (3) frequencies
Measure Mode: 1M Ohms (displayed)

Includes: 10' lead set & ground stake.
Tab 3
Stacks Image 22298

10 - Watt

The Loc-10Tx high power transmitter is designed to provide customers the best choice when selecting and deciding on a professional locating system. The 10 watt is fully featured, and reliability and output performance unequaled by the competition.

Output Current: a maximum current output of 1.0 Amp (10 watts)
Output Voltage: 30V-50V RMS
Voltage Protection: up to 240 VAC (external fuse)
Batteries: 12 D-cell (or optional Rechargeable)
Induction: User Selectable
Clamp: 8kHz to 83kHz
Direct Connect: FF-High, FF-Low, SD-USA, SD-EUR, 256Hz, 440Hz, 484Hz, 491Hz, 512Hz, 640Hz, 982Hz, 8.19kHz, 8.44kHz, 9.5kHz, 9.82kHz, 32.8kHz, 38kHz, 65.5kHz, 78.1kHz, 82.5kHz, 83.1kHz, 89kHz, 131kHz, 200kHz
Multifrequency Mode: up to (2) frequencies

Includes: 10' lead set & ground stake.
Stacks Image 22304
Tab 4
Stacks Image 22308

150 - Watt

The vLocDM Transmitter is a high-powered unit which makes long range signal detection possible up to 20 miles (32km). The flexible power requirements enable it to utilize the variety of supplies available at most transformer rectifier stations. This allows the transmitter to provide its full 150W of output power over prolonged periods, without costly battery replacements. Hookup is a simple four wire connection procedure. The transmitter is compatible with both distribution and transmission networks.

Output Current: a maximum current output of 4.0 Amp RMS (up to 150 watts)
Output Voltage: 120V RMS
Voltage Protection: up to 250 VAC (external fuse)
Batteries: none (use 120VAC mains or 12-50VDC-rectifier)
Frequencies: 512Hz & 8.19kHz

Includes: 10' lead set, 10' DC input leads, 9' output mains plug.
Tab 5
Stacks Image 22316

50 - Watt

The FLS Transmitter is a high-powered rack mount unit that when installed can be remotely controlled via any telephone. Password protected, users can call-up, turning up to 16 different cable or pipe unique locating signals on making high value cable locating easy and secure.

Output Current: a maximum current output of 1.0 Amp RMS (up to 50 watts)
Output Voltage: 100V RMS

Accessories

Accessories can be a time saver when just the right tool for the job is needed. The right accessory can in some applications save hours of work. You will find that Vivax-Metrotech has the right accessory for almost every need.
  • Carry Options
  • Clamps
  • A-Frame
  • Remote Antenna
  • Live Power Filter
  • Rechargeable Batteries
  • Leads
  • Sondes
  • GPS
Tab 1
Stacks Image 22333
Soft Carry Bag
(4.02.000064)
Stacks Image 22336
Carry Bag with Wheels
(4.02.000066)
Stacks Image 22339
Hard Case
(2.204.01.00035)
Stacks Image 22342
Shoulder Bag (Receiver only)
(4.02.000065)
Stacks Image 22345
Transmitter Bag(s)
(4.02.000013-10w)
(4.02.000067-1w&5w)
Tab 2
Stacks Image 22350

2" Signal Clamp
(1.200.03.00011)

The 2" clamp is used for smaller telephone cable applications, CATV, and fiber optic cables.

Stacks Image 22353

4" Signal Clamp
(1.200.03.00012)

The 4" clamp is often desired for telephone and some power applications.

Stacks Image 22356

5" Signal Clamp
(1.200.03.00004)

The 5" clamp is the new industry standard. It allows signal application on 4" and larger conduit. This is the most popular clamp selection for users primarily locating underground power cable.

Stacks Image 22359

18" Flexi-Clamp
(1.200.03.00006)

Flexi-Clamp is primarily used for aerial cables transitioning to underground under protected U-guard, making it nearly impossible for smaller clamps to be used. Also can be used to apply signal to large bunches of cables.

Stacks Image 22364
Clamp Adapter and Extension Pole
Tab 3
Stacks Image 22371
An A-Frame accessory provides a plug-n-play approach to simple and easy conductor fault locating. An essential tool for any power provider. Constructed of Light-Weight Carbon Fiber.
Stacks Image 22376
The VM-510FFL stand-alone A-Frame provides a stand-alone approach to simple and easy fault locating. The VM-510FFL line and fault locates. Constructed of Light-Weight Carbon Fiber.
Tab 4
Stacks Image 22382
The Remote Antenna (USB) accessory is designed to locate the individual cable among the many bundles that can be present in some communication applications and for “Hot” cable identification for locating unmarked secondaries in power transformers, eliminating the need to shut down working power conductors when doing secondary fault locating or maintenance.

(2.204.02.00001)
Tab 5
Stacks Image 22390
LPC Separation Filter provide an easy and safe method of applying transmitter signals to “Live” power lines via AC plug.

(1.200.09.00001)
Stacks Image 22395
LCC Separation Filter provide an easy and safe method of applying transmitter signals to “Live” power lines via direct connection clips.

(1.204.10.00001)
Tab 6
Stacks Image 22401
Using the 10-Watt transmitter Rechargeable battery pack saves money and helps keep the environment green. These battery packs can be recharged hundreds of times and can last the equivalent of two (2) regular Alkaline change-outs. Kit includes wall charger.

(200-191-025-B)
Stacks Image 22404
The 5-Watt transmitter Rechargeable Battery Pack. Kit includes wall charger.

(2.205.05.00042)
Stacks Image 22407
The Li-Ion Rechargeable Battery Pack (Rx) replaces the alkaline battery tray in the vLocPro2 receiver. Included in vLocPro2.

(2.204.01.00039)
Stacks Image 22410

vLocPro2 Receiver
Vehicle 12VDC Charger

(2.204.01.00051)

Stacks Image 22413

vLoc-5Tx & vLoc-10Tx Transmitter
Mains AC Power Lead (Not Charger) - 30'

Stacks Image 22416

Transmitter Vehicle 12DC Power Lead
(Not a charger - provides alternate power to transmitter) - 30'

(2.200.04.00017)

Tab 7
Stacks Image 22422
(2.205.01.00018) - Standard Clips
(2.213.02.00013) - Large Clips
(2.205.01.00033) - Telephone Clips

All leads includes holder
Stacks Image 22425
Ground Extension reel (30-feet)

(2.200.04.00082) - 32'
(2.200.04.00078) - 98'
Stacks Image 22428
Ground Stake

(3.02.01.000980)
Tab 8
Tab 9
The vLocPro2 & vLocML2+ can be connected to a mounted GPS such as a Holux or Trimble or Asteri whereas the latitude & longitude is logged internally with locate information, such as depth of utility, frequency, current measurement of signal, etc.. These data logs are easily accessible for mapping with applications such as Google Earth, etc. using

Detailed locate information can easily be processed and utilized using UtiliMapper and UtiliPad software from Tri-Global.
  • Bluetooth
  • Mounted (Holux)
  • UtiliMapper
  • Asteri
  • UtiliPad
  • VMMAP
Tab 1
Stacks Image 22450
Plug-N-Play Bluetooth module can be customer installed into any vLocPro2/vLocML2/vLocDM2 receiver to provide reliable wireless communication to external devices, such as GPS receivers.
(2.204.01.00044)
Stacks Image 22453
Tab 2
Stacks Image 22457
The Holux GPS receiver can be connected using Bluetooth to the vLocPro2 and vLocDM2 for pipeline current defect mapping and plotting and utility mapping. Also requires Bluetooth module to be installed onto receiver.

(2.204.01.00012) - Includes GPS and Holder
Stacks Image 22460
Tab 3
Stacks Image 22464
Tri-Global UtiliMapper Software
Stacks Image 22467
Trimble GPS Systems
Tab 4
Stacks Image 22473
Stacks Image 22475
Asteri GPS Systems
Tab 5
Stacks Image 22481
Tri-Global UtiliPad Software
Stacks Image 22484
Tab 6
Stacks Image 22489
VMMAP for Smartphones and tablets
Stacks Image 22492

vLocML2+

Stacks Image 22499
The new vLocML2+ is the perfect locator for systems where EMS marker balls are used. The vLocML2+ comes standard with all the features as the vLocPro2 but with a built-in lightweight tough carbon fiber encased antenna for accurate marker ball detection. The vLocML2+ can be a dedicated marker ball locator, a full featured pipe & cable locator, or locate both marker balls and pipes & cables simultaneously. The new dual antenna design provides auto depth during marker mode locates.

The color display indicates the marker type, and is identified by both, a colored ICON and a number - the response is indicated by a large animated circular ball.
Stacks Image 22503
  • Information
  • Screens
  • EM Markers
  • Marker Depth
Tab 1
Tab 2
Stacks Image 22513
Tab 3
Stacks Image 22516
Stacks Image 22518
Tab 4

vLocML2+ Automatic Marker Depth
Locator MUST be in Dedicated Marker Mode

  1. Switch to Dedicated marker mode
  2. Pinpoint the position of the marker
  3. Position locator on ground directly above target marker
  4. Press [ i ] button and below will be displayed
  5. The rotating symbol indicates that unit is calculating the depth. Hold the unit stationary while it calculates.
Stacks Image 22527
Depth estimation will now be displayed (As seen on below screen) Receiver will indicate in either metric or imperial depending on setting in menu.
Stacks Image 22531
If required press (+) button to log into memory (GPS mapping applications)
If the following display is shown, this indicates that the marker is either out of range or there is an invalid signal.
Stacks Image 22538
