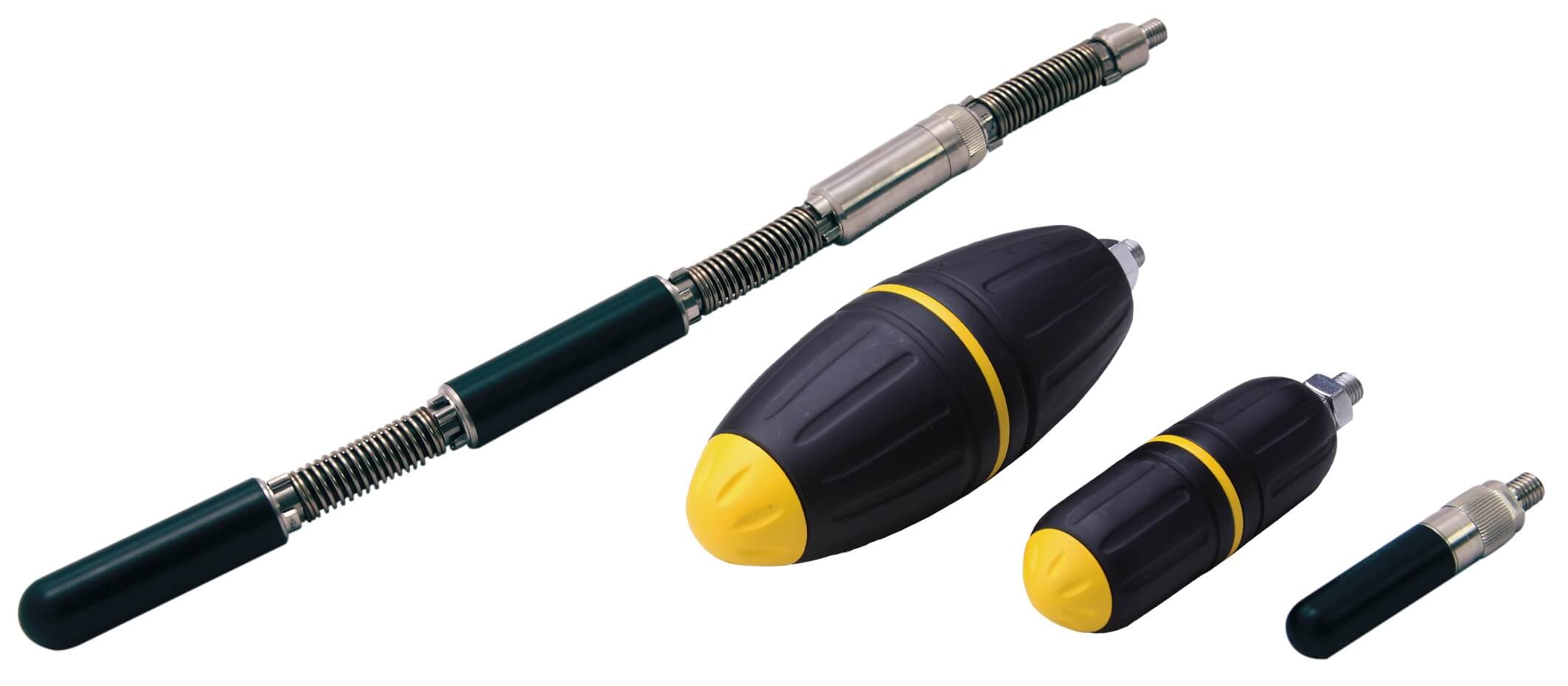

A sonde is a small self-contained battery powered transmitter that can be located by a compatible pipe locator receiver. Sondes are typically used to locate non-metallic pipe, drains, sewer or duct. The sonde is propelled along the non-metallic pipe using conventional drain push rods, or pipe inspection camera systems. Sondes are also used to trace non-metallic sewers, drains, ducts or pipes and to pinpoint blockages or collapses.
Stacks Image 276
  • D38 (standard)
  • D64 (large)
  • D23 (flexible)
  • D18 (small)
  • D22 (small)
  • Sonde Locators
  • Pushrods / Rodders
  • Specifications
Tab 1
Standard Sondes:

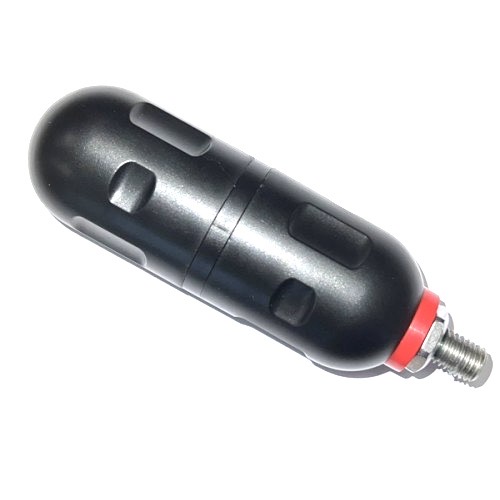

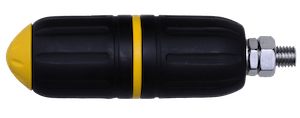

The Standard Sonde combines compact size with a strong signal. The standard for most applications unless a smaller size, greater depth or specially rugged construction is required.

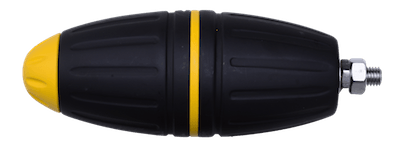

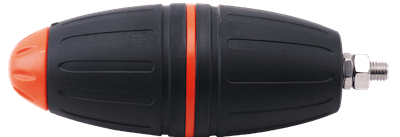

Stacks Image 20328
P/N: D38 (1.203.18.00001)

Specifications:
  • Frequency - 9.82kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 5.2 in x 1.5 in (132mm x 38mm)
  • Weight: 0.31 lbs (0.14kg)
  • Signal: Continuous
  • Depth Range: 16.3 feet (5m)
  • Batteries: 1 x AA (LR6) alkaline
  • 20 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 9.82kHz D38 sonde
Stacks Image 1622

VM-850

Stacks Image 1624

vLoc-9800

Stacks Image 1628

vLocML2

Stacks Image 1626

vLocPro2
vLoc-5000

P/N: D38 (1.203.17.00001)

Specifications:
  • Frequency - 33kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 5.2 in x 1.5 in (132mm x 38mm)
  • Weight: 0.31 lbs (0.14kg)
  • Signal: Continuous
  • Depth Range: 16.3 feet (5m)
  • Batteries: 1 x AA (LR6) alkaline
  • 20 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 33kHz D38 sonde
Stacks Image 1601

VM-540

Stacks Image 1603

vLocCam2

Stacks Image 1607

vLocML2

Stacks Image 1605

vLocPro2
vLoc-5000

Stacks Image 40968

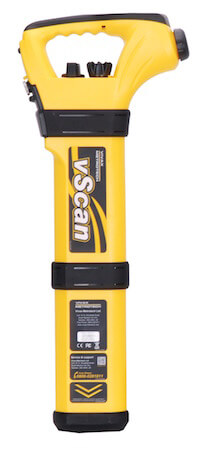

vScan
vScanM

P/N: D38 (1.203.19.00001)

Specifications:
  • Frequency - 83kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 5.2 in x 1.5 in (132mm x 38mm)
  • Weight: 0.31 lbs (0.14kg)
  • Signal: Continuous
  • Depth Range: 16.3 feet (5m)
  • Batteries: 1 x AA (LR6) alkaline
  • 20 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 83kHz D38 sonde
Stacks Image 2618

VM-810

Stacks Image 2626

vLoc-9800

Stacks Image 2650
vLocML2
Stacks Image 2648

vLocPro2
vLoc-5000

Tab 2
D64 Sonde
The D64 sondes have very strong enclosure suitable for the most abrasive and rugged duty in municipal sewer systems. The sonde has a long life for daily use in all conditions.

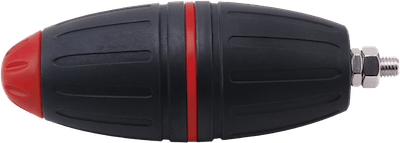

Stacks Image 20330
P/N: D64 (1.203.21.00001)

Specifications:
  • Frequency - 9.82kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 7.0 in x 2.5 in (179mm x 64mm)
  • Weight: 0.72 lbs (0.27kg)
  • Signal: Continuous
  • Depth Range: 26 feet (8m)
  • Batteries: 1 x 9V (6LR61) alkaline
  • 15 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 9.82kHz D64 sonde
Stacks Image 3776

VM-850

Stacks Image 3781

vLoc-9800

Stacks Image 3791

vLocML2

Stacks Image 3796

vLocPro2
vLoc-5000

P/N: D64 (1.203.20.00001)

Specifications:
  • Frequency - 33kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 7.0 in x 2.5 in (179mm x 64mm)
  • Weight: 0.72 lbs (0.27kg)
  • Signal: Continuous
  • Depth Range: 26 feet (8m)
  • Batteries: 1 x 9V (6LR61) alkaline
  • 15 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 33kHz D64 sonde
Stacks Image 41062

VM-540

Stacks Image 41067

vLocCam2

Stacks Image 41072

vLocML2

Stacks Image 41077

vLocPro2
vLoc-5000

Stacks Image 41082

vScan
vScanM

P/N: D64 (1.203.22.00001)

Specifications:
  • Frequency - 83kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 7.0 in x 2.5 in (179mm x 64mm)
  • Weight: 0.72 lbs (0.27kg)
  • Signal: Continuous
  • Depth Range: 26 feet (8m)
  • Batteries: 1 x 9V (6LR61) alkaline
  • 15 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 male
Locators for 83kHz D64 sonde
Stacks Image 3835

VM-810

Stacks Image 3840

vLoc-9800

Stacks Image 3847
vLocML2
Stacks Image 3852

vLocPro2
vLoc-5000

Tab 3
D23 Sonde
The Flexible sonde is an articulated sonde transmitters and can be used with any 512Hz locator. This flexible sonde is for use with cast iron pipe.
Stacks Image 3158
P/N: D23 (2.203.03.00004) w/end cap, M10

Specifications:

  • Frequency - 512Hz
  • Construction: Articulated POM (Polyoxymethylene) & Stainless steel (3 interconnected sections)
  • Dimensions: 17.3 x 0.9 in (440mm x 23mm)
  • Weight: 0.95 lb (0.43kg)
  • Operating Frequency: 512Hz
  • Signal: Continuous
  • Depth Range: 20 ft (6m)
  • Batteries: 1 x AA (LR6) alkaline
  • 12 hours life, continuous use
  • Operating Temp: +5ºF to +185ºF (-20ºC to +85ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 x 1.5
Locators for D23 sonde (512Hz)
Stacks Image 3870

VM-540

Stacks Image 3875

vLocCam2

Stacks Image 3880

vLocML2

Stacks Image 3885

vLocPro2
vLoc-5000

Tab 4

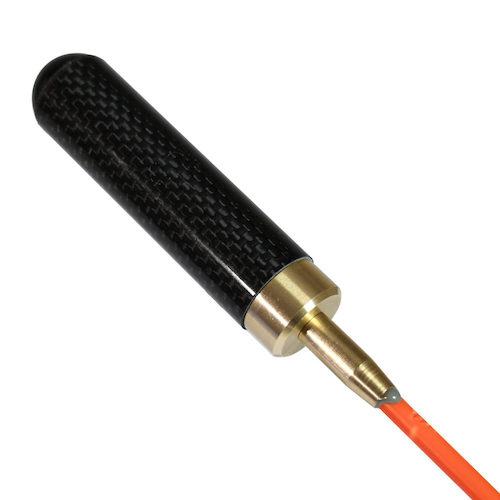

D18 Sonde
This sonde has a strong signal for use in small diameter pipes and ducts.
Stacks Image 3159
Available End Caps
Stacks Image 9106
M10 Stud - Narling
(2.203.05.00001)
Stacks Image 9077
Eyelet
(2.203.01.00006)
P/N: D18 (2.203.05.0003)

Specifications:

  • Frequency - 33kHz
  • Construction: POM (Polyoxymethylene) & Stainless steel
  • Dimensions: 3.6 x 0.70 in (91mm x 18mm)
  • Weight: 0.13 lbs. (0.06kg)
  • Operating Frequency: 32.8Hz (33kHz)
  • Signal: Continuous
  • Depth Range: 15 feet (4.5m)
  • Batteries: 2 x button cell (SR44)
  • 10 hours life, continuous use
  • Operating Temp: +5ºF to +131ºF (-20ºC to +55ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: M10 x 1.5
Locators for D18 sonde (33kHz)
Stacks Image 41170

VM-540

Stacks Image 41175

vLocCam2

Stacks Image 41180

vLocML2

Stacks Image 41185

vLocPro2
vLoc-5000

Stacks Image 41190

vScan
vScanM

Tab 5
D22 Sondes:
The D22 Sonde combines compact size with a strong signal. Designed for legacy Metrotech locator frequencies.
Stacks Image 40606
P/N: D22 (1.203.15.00001)

Specifications:
  • Frequency - 9.82kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 4.5 in x 0.87 in (114.3mm x 22mm)
  • Weight: 7 oz. (140g)
  • Signal: Continuous
  • Depth Range: 16.3 ft (5m)
  • Batteries: 4 x Button cells (LR43)
  • 15 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: 1/4-20 UNC female & M12
Locators for 9.82kHz D22 sonde
Stacks Image 40877

VM-850

Stacks Image 40882

vLoc-9800

Stacks Image 40887

vLocML2

Stacks Image 40892

vLocPro2
vLoc-5000

P/N: D22 (1.203.16.00001)

Specifications:
  • Frequency - 83kHz
  • Construction: POM (Polyoxymethylene)
  • Dimensions: 4.5 in x 0.87 in (114.3mm x 22mm)
  • Weight: 7 oz. (140g)
  • Signal: Continuous
  • Depth Range: 16.3 ft (5m)
  • Batteries: 4 x Button cells (LR43)
  • 15 hours life, continuous use
  • Operating Temp: -4ºF to +122ºF (-20ºC to +50ºC)
  • Submersion Level: 29PSI (2 bar), 65.6 ft. (20m) water
  • Thread: 1/4-20 UNC female & M12
Locators for 83kHz D22 sonde
Stacks Image 40931

VM-810

Stacks Image 40936

vLoc-9800

Stacks Image 40941
vLocML2
Stacks Image 40946

vLocPro2
vLoc-5000

Tab 6
  • vLocCam2
  • VM-540
Tab 1
Stacks Image 2497

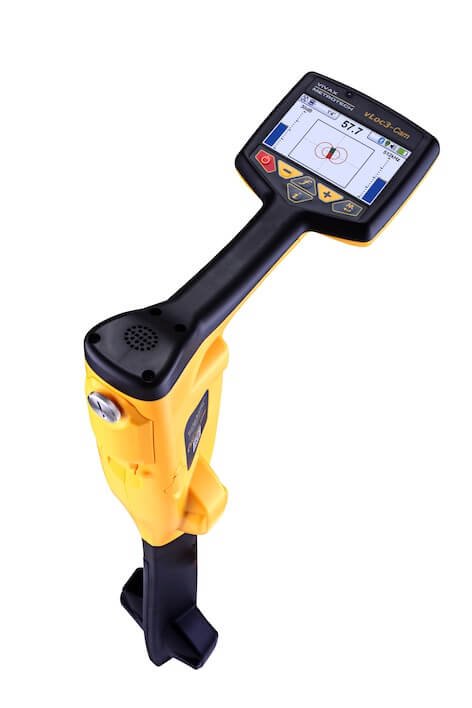

The vLocCam2 locator is designed to locate pushrod camera sondes. It is equipped with the frequencies used by most other popular pushrod camera systems - 512Hz, 640Hz. It also includes 33kHz for locating the camera in deeper nonmetallic pipes. A passive power mode is included to locate signals radiating from adjacent pipes and cables, providing the user with an ability to sweep for these known and/or unknown utilities.

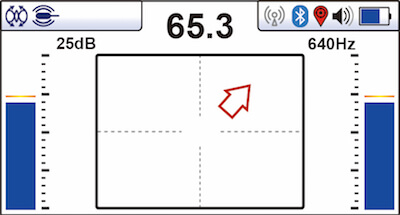

Stacks Image 6977

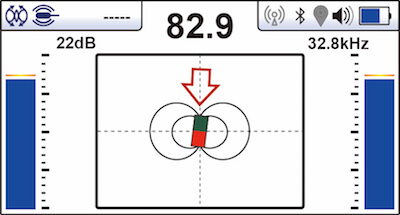

SondeLocating2
Tab 2
Stacks Image 288
The VM-540 locator is designed to locate pushrod camera sondes. It is equipped with the two most popular sonde frequencies used by most pushrod camera systems - 512Hz & 33kHz. A passive power 60Hz mode is included to locate signals radiating from adjacent pipes and cables, providing the user with an ability to sweep for these known and/or unknown utilities.
Stacks Image 6981
Stacks Image 1018
Tab 7

Good Buddy I
300ft to 400ft
(Horizontal or Vertical)
3/8" Dia

Stacks Image 1029

Good Buddy III
300ft to 400ft
(Low Profile)
3/8 Dia

Stacks Image 1027

Good Buddy II
400ft to 600ft
(Standard)
3/8" Dia

Stacks Image 1020
Stacks Image 4062

Big Buddy
400ft to 1,000ft
(Largest Rodder)
1/2" Dia

Stacks Image 1031
Stacks Image 4076

Duct Hunter
300ft to 800ft
5/16" Dia

Stacks Image 1035

Duct Hunter
400ft to 1,000ft
7/16" Dia

Stacks Image 1033
NOTE:

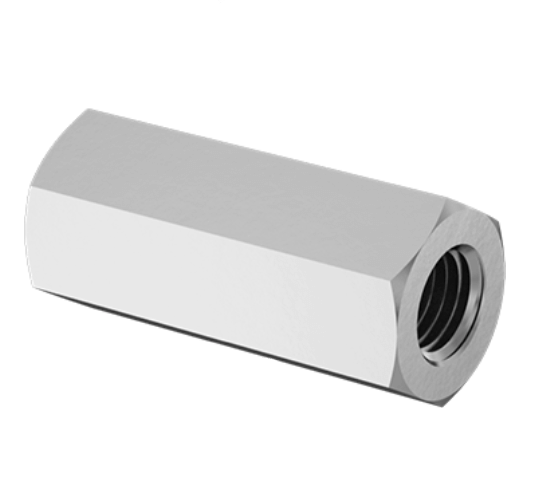

Sonde adapter (12-170) is required for Jameson pushrod use.
Stacks Image 3994
Optional:
Heavy duty flexible adapter (9-169-M10) is required for Jameson pushrod use.
Stacks Image 4101
Tab 8
Stacks Image 6649
Vivax-Metrotech Sondes
