Vivax-Metrotech vCamMX Video Pipe Inspection System

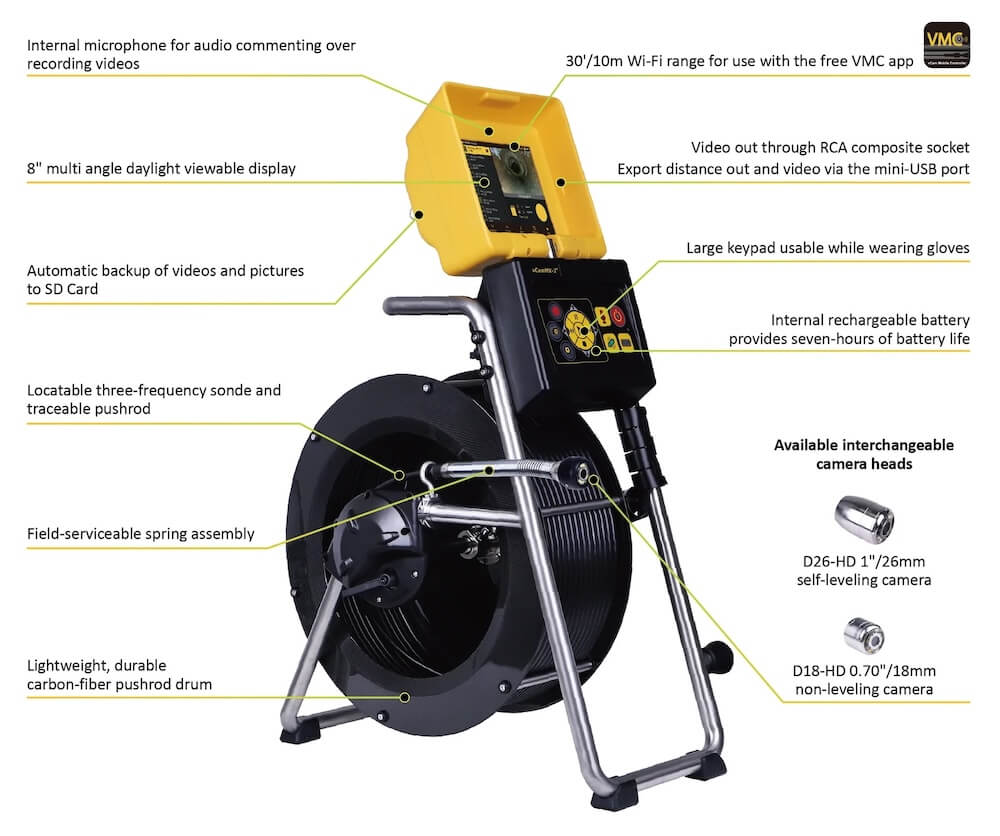

The vCamMX-2 mini is a professional pipe inspection camera system from Vivax-Metrotech. Its small diameter cameras and LCD provide plumbers with a perfect lightweight camera system for quick service line video recording and pipe inspection.

vCamMX-2 provides the choice of two camera options, i.e., 0.7" fixed (D18) and 1.0" self-leveling (D26). In addition, every MX reel (100/150/200ft) offers a stainless steel tubular frame and a high-strength carbon fiber drum. Carbon fiber and stainless steel eliminate the potential of rust and corrosion commonly found on older lower-cost painted steel frame designs and are much more durable than plastic drum-type reels.

Every vCamMX-2 includes a built-in USB port with memory sticks capability for video storage and an internal Li-Ion battery (4-6 hr.). However, it can also run on any 120VAC main outlet or 12DC auto outlet. Other features include "Locatable" push-rod, built-in sonde (512Hz/640Hz/33kHz), and Wi-fi (150ft range) for smartphone/tablet app use.

There are hidden images / Tidy mode active.

0.7" Fixed camera
1" Self-leveling camera

100 ft. / 0.7” fixed

Ordering Number:

VMX-100A-D18N

100 Ft / 10mm Locatable Rod
0.7” Camera - Fixed (D18-MX)
Stainless Steel & Carbon Fiber
vCamMX Control Module
Accessory Carry Bag & Kit

0.7" Fixed camera
1" Self-leveling camera

150 ft. / 0.7” fixed

Ordering Number:

VMX-150A-D18N

150 Ft / 10mm Locatable Rod
0.7” Camera - Fixed (D18-MX)
Stainless Steel & Carbon Fiber
vCamMX Control Module
Accessory Carry Bag & Kit

0.7" Fixed camera
1" Self-leveling camera

200 ft. / 0.7” fixed

Ordering Number:

VMX-200A-D18N

200 Ft / 10mm Locatable Rod
0.7” Camera - Fixed (D18-MX)
Stainless Steel & Carbon Fiber
vCamMX Control Module
Accessory Carry Bag & Kit

The MX reel is constructed of Stainless-steel tubular frame with a carbon fiber drum.

Features:

Water-resistant to IP65
Hand tightening friction brake to slow pushrod drum
Multiple sonde frequencies - 512Hz and 33kHz
Output power - 1 Watt output providing approx. 9 ft depth in cast iron pipe (expect better results in a nonmetallic pipe)
Pushrod - Fiberglass rod surrounded by multi-conductors and coax wrapped in a Kevlar braid with high-density Polyethylene jacket
Length - Available in 100ft, 200ft and 200ft lengths
Diameter - 10mm
Rod Break Strength - 4,000 lbs.
Bend Radius - Approx. 40 x the diameter

The D18-MX & D26-MX camera heads are constructed of Stainless-steel.

D18-MX
D26-MX

D18-MX Features:

Application - Pipe diameters from 1 to 4 inches
Horizontal Resolution - 520 TVL
Active Pixels - NTSC 720 x 480
Focus Point - 4.7”
Aperture / FOV - F2.0/55º
Light Sensitivity - 0.008 Lux
Lighting - 10,000 mcd illumination LED x 6 pcs
Auto Upright - None, fixed position non-leveling camera
Camera Housing - Stainless steel
Camera Lens - Scratch-resistant Sapphire
Environmental - Water resistance up to 11 BAR pressure
Temperature Range - Storage: -4ºF to 158ºF, Operating: 14ºF to 122ºF
Dimension Installed - 0.7” (Dia.) x 1.2” (L) without skid

D26-MX Features:

Application - Pipe diameters from 2 to 4 inches
Horizontal Resolution - 700 TVL
Active Pixels - NTSC 720 x 480
Focus Point - 12”
Aperture / FOV - F2.0/88.4º
Light Sensitivity - 0.01 Lux
Lighting - 10,000 mcd illumination LED x 9 pcs
Auto Upright - Cantilever self-leveling design
Camera Housing - Stainless steel
Camera Lens - Scratch-resistant Sapphire
Environmental - Water resistance up to 10 BAR pressure
Temperature Range - Storage: -4ºF to 158ºF, Operating: 14ºF to 122ºF
Dimension Installed - 1.02” (Dia.) x 2” (L) without the skid.

vCamMX-2 LiveView App

The vCamMX-2 LiveView mobile app from Vivax-Metrotech provides users a live video stream from the vCamMX-2 pipe inspection camera system onto their iOS iPhone or iPad.

This video stream allows users to record video and capture JPEG pictures on their iOS device. Users can easily share the files using your built-in iOS file sharing features.

Rename files
Record video and capture JPEG pictures
Edit files in the Apple iMovie video editing app
Share via iOS file sharing features (email, text message, or 3rd party such as DropBox or OneDrive, etc.)

The vLoc3-Cam sonde locator from Vivax-Metrotech is built on a new Triaxial 3D antenna architecture providing the best-in-industry sonde locating experience. The vLoc3-Cam makes finding and locating sondes and camera heads quick and easy every time. Approach the sonde from any direction, and the bright color LCD will guide you to the exact location of the camera head with depth.

The vLoc3-Cam includes all the industry-standard sonde frequencies and a line trace frequency for locating the entire length of the camera pushrod. In addition, an optional transmitter is available for this application. The vLoc3-Cam also includes passive Power and Radio modes for traditional utility sweeping.

Graphical locate layout (best sonde mode on the market)
Pushrod and Line trace: *83kHz only.
Active frequencies (sonde): 512Hz / 640Hz / 8.19kHz / 9.82kHz / 33kHz / 83kHz
Passive: Power 60Hz / Radio

*requires an optional portable transmitter

The vScan receiver is both a line & sonde locator. The vScan receivers antenna orientation makes it ideal for sonde locating. It includes the two most popular sonde frequencies used by pushrod camera manufacturers - 512Hz & 33kHz. A passive power 60Hz and Radio mode for locating passive signals radiating from adjacent pipes and cables allows users to sweep for known and unknown utilities.

*Optional: Transmitter for pipe locating
Optional: Metal detection mode
Active frequencies (sonde): 512Hz / 640Hz / 33kHz
*Active (line): 33kHz / 131kHz
Passive: Power 60Hz / Radio

*requires an optional portable transmitter

The VM-540 receiver locates pushrod camera heads and sondes. It includes the two most popular sonde frequencies used by pushrod camera manufacturers - 512Hz & 33kHz. A passive power 60Hz mode for locating signals radiating from adjacent pipes and cables provides users an ability to sweep for both known and unknown utilities.

Visual and audio response
Lightweight and compact design
Cost Effective (our most affordable option)
Active frequencies (sonde): 512Hz / 640Hz / 33kHz
Passive: Power 60Hz
