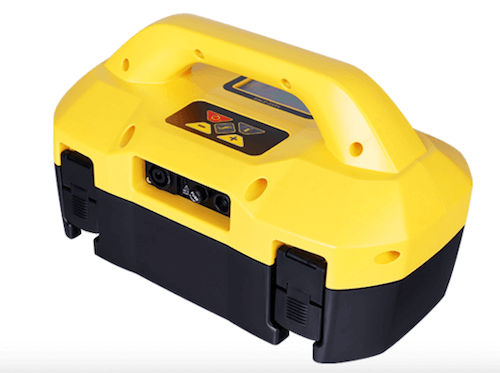

25 - Watt (Loc3 Series)
The powerful Loc3-25Tx transmitter is the go-to transmitter for problematic deep pipe & long distance pipe & cable locating. Also its perfect for finding holidays on coated pipelines. The smaller Loc3-25Tx is perfect for gas distribution applications.
In addition to the above applications the Loc3-25Tx features high current-single frequencies making this transmitter the best solution for extreme deep pipe applications.

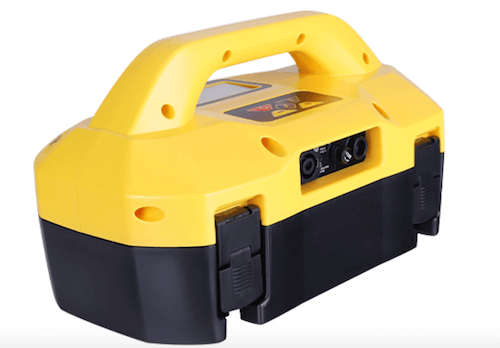

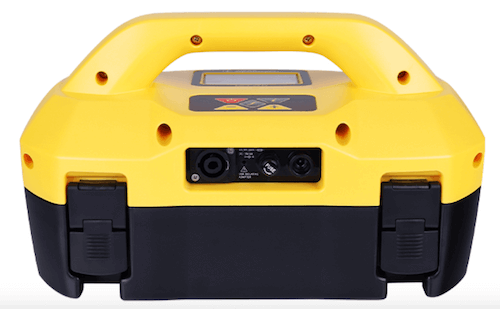

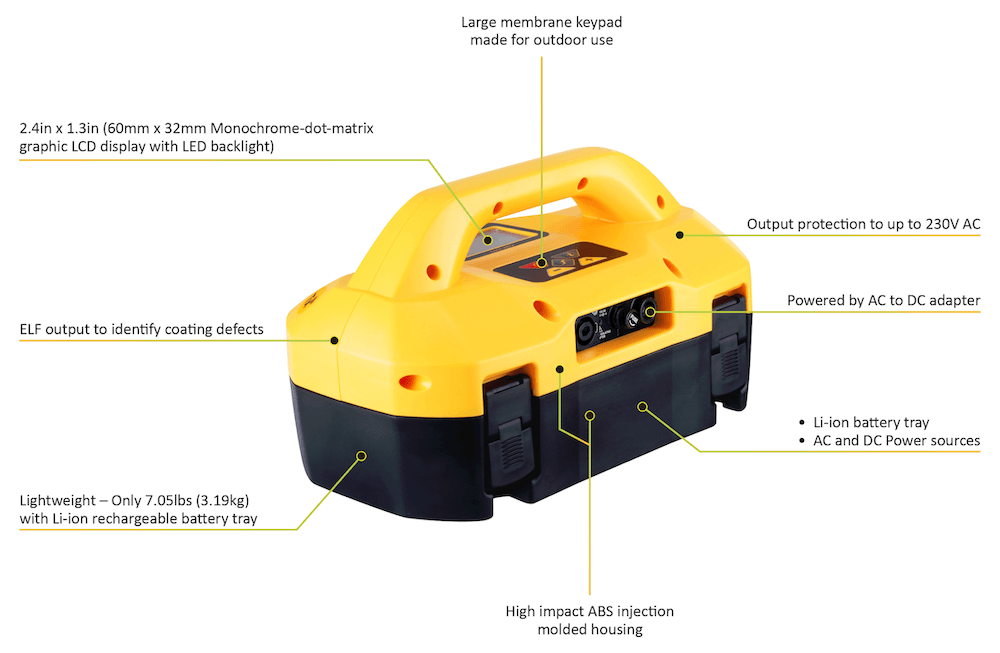

The Loc3-25Tx is built on a rugged, ergonomic IP54 housing and is lightweight (only 7.05lbs). This transmitter provides consistent current output up to 4.0 Amps peak.

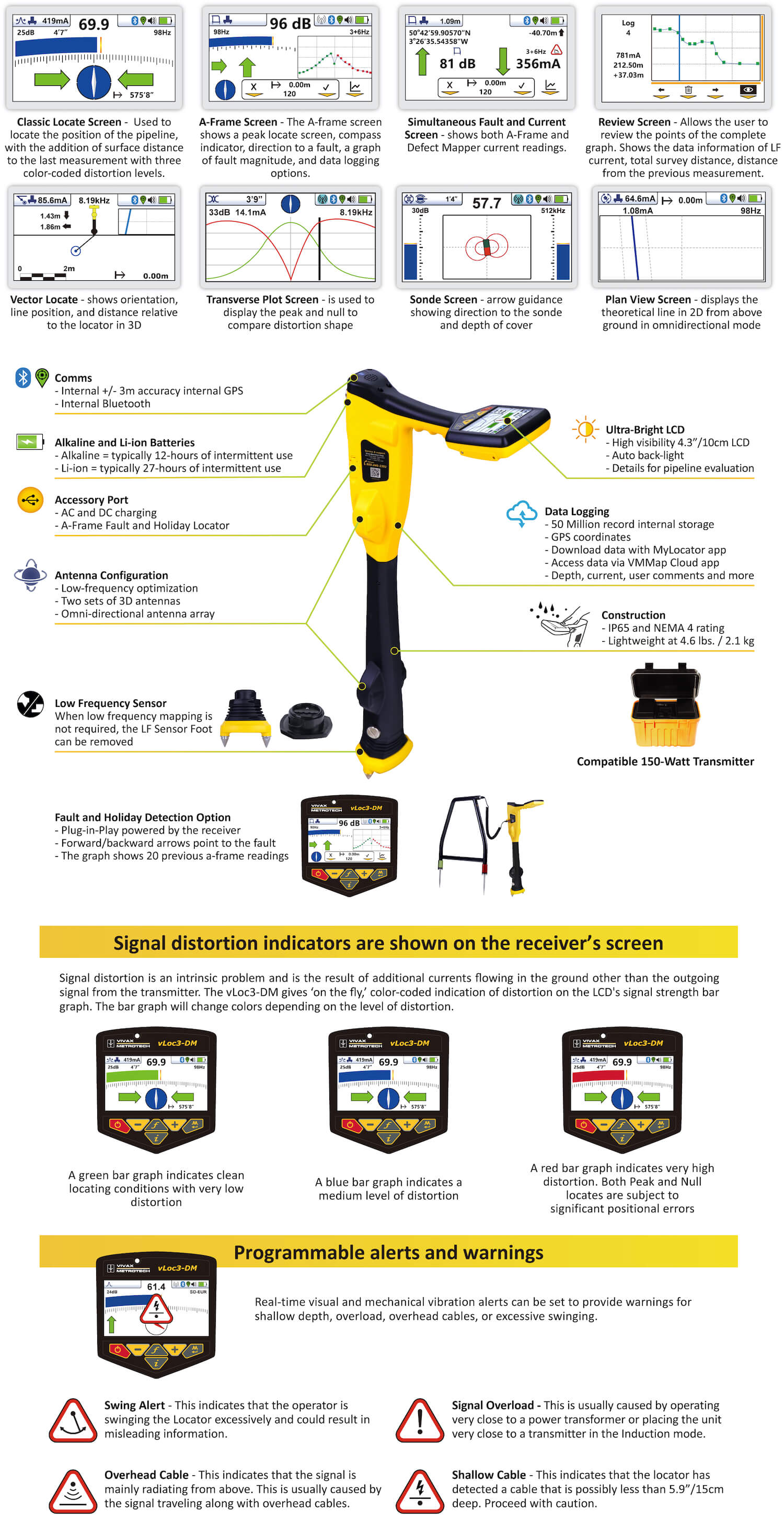

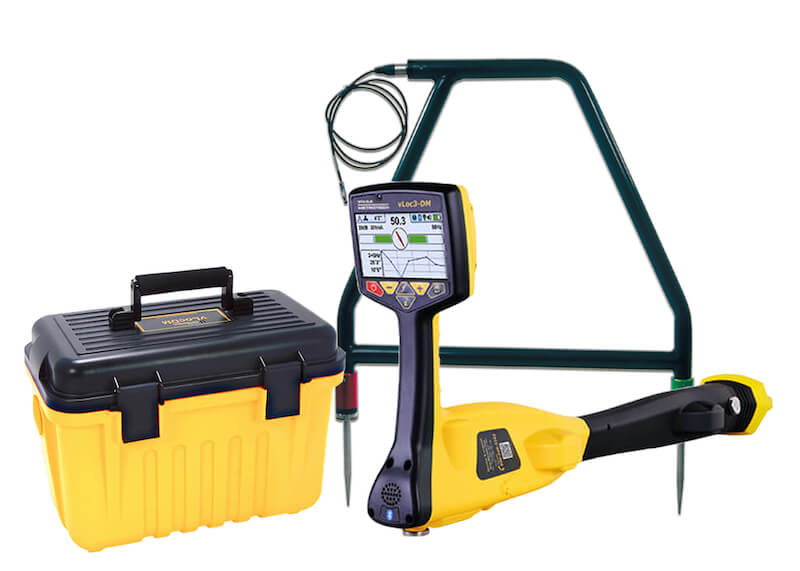

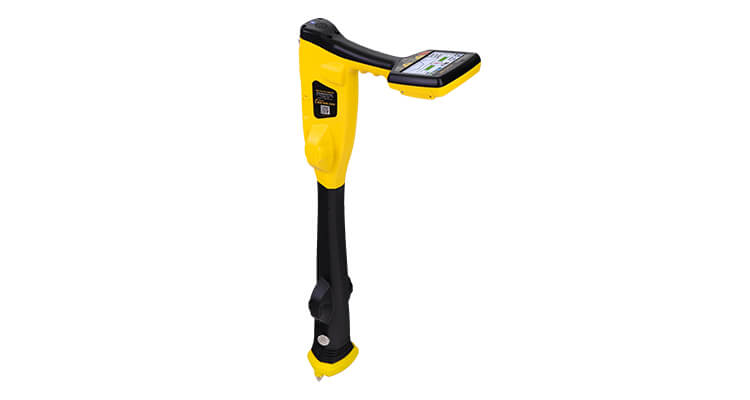

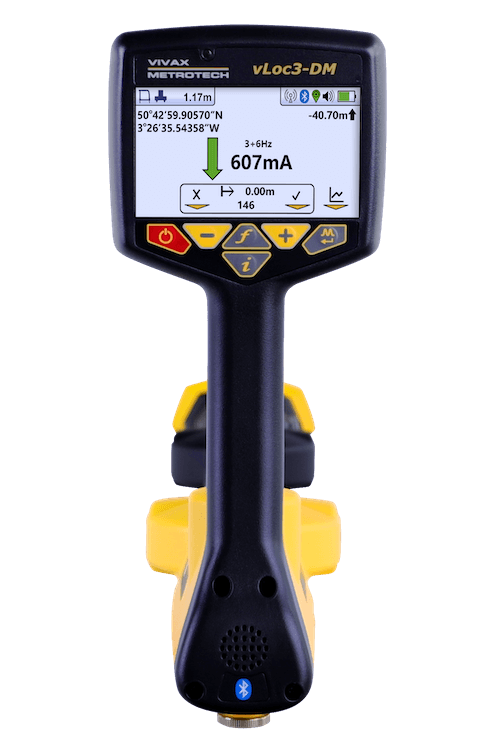

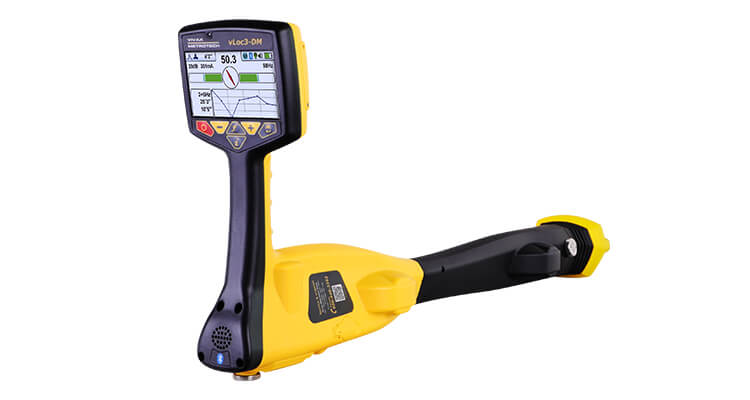

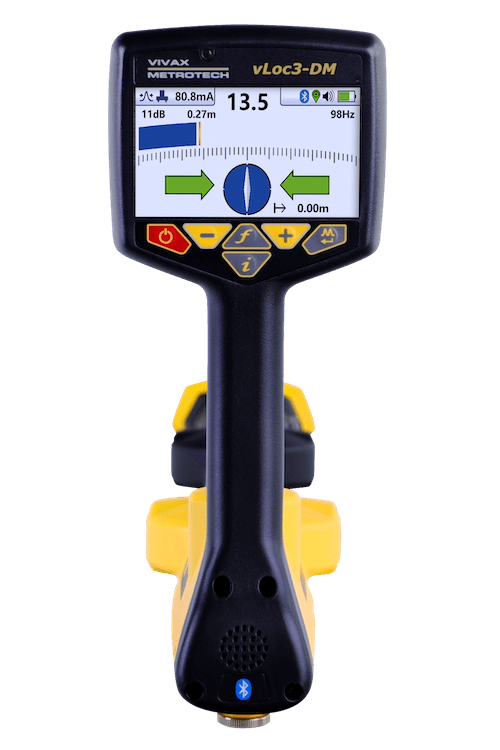

If equipped with optional TX LINK, the transmitter can be remotely controlled by the vLoc3 series receiver. The range is typically 985 ft. (300m).
Key Frequencies of the Loc3-25Tx Transmitter
Transmission pipeline (current defect mapping)
- 3Hz & 98Hz
- 3Hz & 128Hz

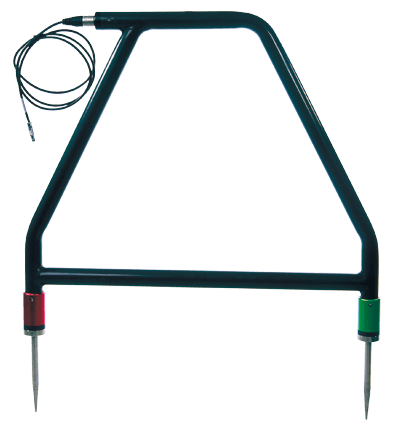

- ELF1 - 3Hz / 6Hz / 98Hz (ACVG)
- ELF2 - 3Hz / 6Hz / 128Hz (ACVG)
- 4Hz & 98Hz
- 4Hz & 128Hz
- ELF3 - 4Hz / 8Hz / 98Hz (ACVG)
- ELF4 - 4Hz / 8Hz / 128Hz (ACVG)
- Distribution pipeline (current defect mapping)
- 3Hz / 6Hz / 512Hz (ACVG)
- 3Hz / 6Hz / 640Hz (ACVG)
- 4Hz / 8Hz / 512Hz (ACVG)
- 4Hz / 8Hz / 640Hz (ACVG)
Single Frequency modes (long-distance/deep applications)
- 20Hz to 9.82kHz
Key Features of the Loc3-25Tx Transmitter
- 4.0 Amp peak current output
- 130 Volts peak output
- Light and portable for everyday use
- ELF and Low frequencies for minimum distortion
- Includes all PCM & PDCM frequencies
- Single frequencies for deep pipe locates
- Signal clamp compatibility
- Li-Ion rechargeable battery
- Heavy duty AC charger can be used to power the transmitter while simultaneously charging battery.
|Output Current||A maximum current output of 4.0 Amp RMS (up to 25 watts)|
|Output Voltage||130V RMS|
|Voltage Protection||Up to 230 VAC (external fuse)|
|Batteries||Li-Ion rechargeable battery (25-watt/2-hours) / (10-watt/6-hours)|
|Frequencies||20Hx to 9.82kHz (including all PCM & PDCM frequencies)|

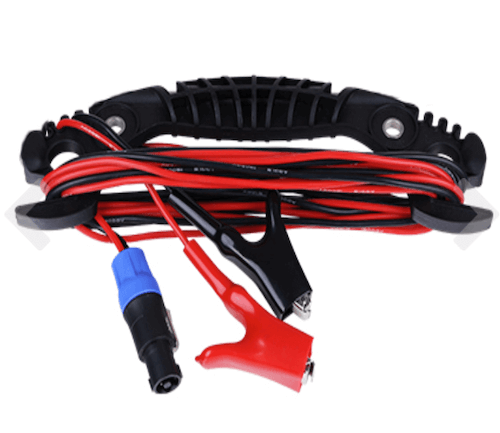

|Included:||Loc3-25Tx transmitter, Conductive attachment leads (10'), Ground stake, Li-Ion battery tray, DC/AC Power supply for battery, Carry bag & Vehicle DC power supply|
